| 型号 | 基本尺寸（mm） Size | |||||||||||

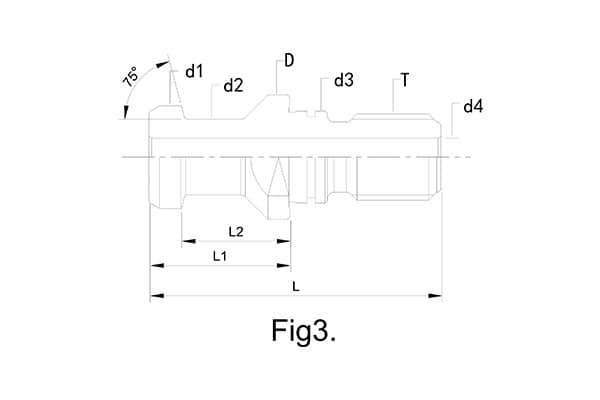

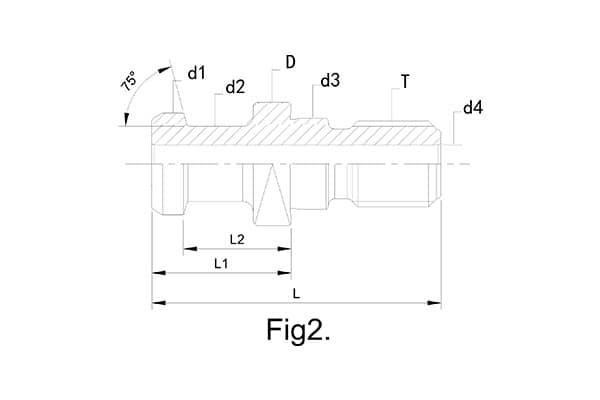

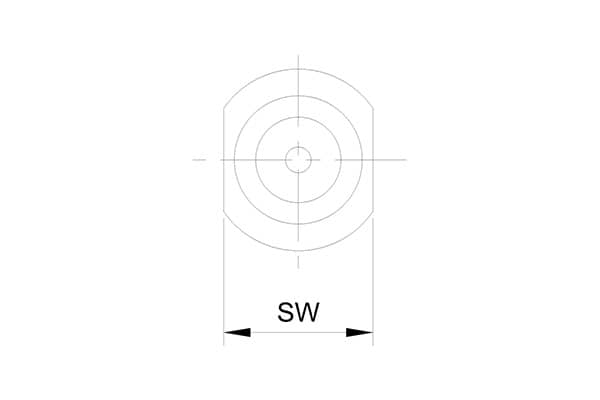

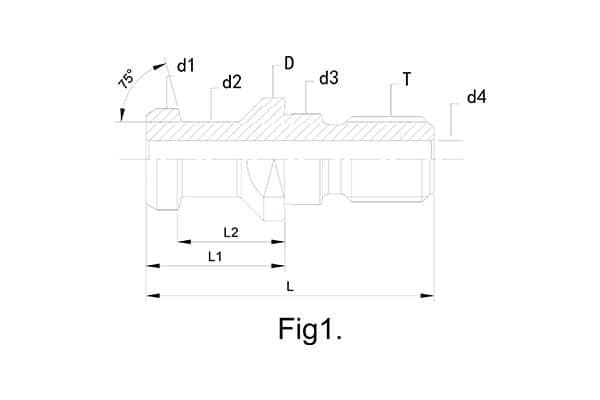

| D | D1 | D2 | D3 | D4 | L | L1 | L2 | SW | T-UNG | FIG | θ | |
| JIS30P | 16.5 | 12 | 8 | 12.5 | 2.5 | 43.4 | 23,4 | 18.4 | 13 | M12*1.75P | 1 | 75 |
| JSB6339-30 | 16.3 | 12 | 8 | 12.5 | 2.5 | 43.4 | 23.4 | 18.4 | 13 | M12*1.75P | 2 | 75 |
| JIS40P | 23 | 19 | 14 | 17 | 7 | 54 | 29 | 23 | 19 | M16*2.0P | 1 | 75 |
| JSB6339-40 | 23 | 19 | 14 | 17 | 7 | 54 | 29 | 23 | 19 | M16*2.0P | 2 | 75 |
| JIS50P | 36 | 28 | 21 | 25 | 11 | 74 | 34 | 25 | 30 | M24*3.0P | 1 | 75 |
| JSB6339-50 | 36 | 28 | 21 | 25 | 11 | 74 | 34 | 25 | 30 | M24*3.0P | 2 | 75 |
| DIN69872-30A | 17 | 13 | 9 | 13 | 2.5 | 44 | 24 | 19 | 14 | M12*1.75P | 1 | 75 |
| DIN69872-30B | 17 | 13 | 9 | 13 | 2.5 | 44 | 24 | 19 | 14 | M12*1.75P | 1 | 75 |
| DIN69872-40A | 23 | 19 | 14 | 17 | 7 | 54 | 26 | 20 | 19 | M16*2.0P | 1 | 75 |
| DIN69872-40B | 23 | 19 | 14 | 17 | 7 | 54 | 26 | 20 | 19 | M16*2.0P | 3 | 75 |
| DIN69872-50A | 36 | 28 | 21 | 25 | 11 | 74 | 34 | 25 | 30 | M16*2.0P | 1 | 75 |
| DIN69872-50B | 36 | 28 | 21 | 25 | 11 | 74 | 34 | 25 | 30 | M16*2.0P | 3 | 75 |
