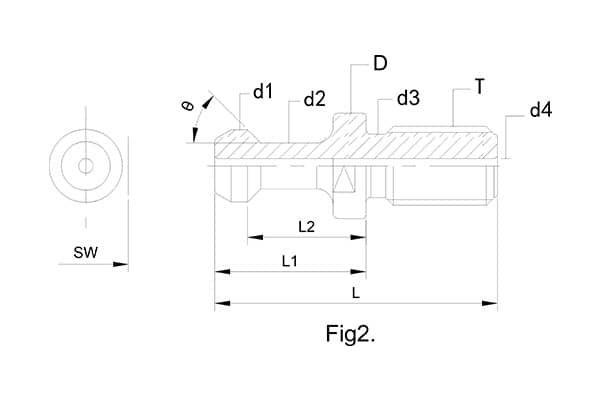

| 型号 | 基本尺寸（mm） Size | 产品图片/备注 | |||||||||||
| D | D1 | D2 | D3 | L3 | L | L1 | L2 | SW | T-UNG | FIG | θ | ||
| ISO20 | 11.4 | 9.0 | 6.0 | 8.5 | 14 | 26 | 12 | 9.0 | 10 | M8*1.25P | 1 | 75 | |
| ISO25 | 11.9 | 10.0 | 7.0 | 9.0 | 16 | 32 | 16 | 11.5 | 10 | M8*1.25P | 1 | 75 | |
| S15T* | 10 | 7.0 | 5.0 | 6.5 | 11 | 26 | 15 | 11.5 | 8 | M6*1.0P | 1 | 75 | |
| S20T* | 13 | 9.5 | 7.0 | 8.5 | 14 | 34.5 | 20.5 | 16 | 11 | M8*1.25P | 1 | 75 | |
| BT10-45 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M5*0.8P | 2 | 45 | |
| BT15-45 | 10 | 7.0 | 4.0 | 6.5 | 11.5 | 28.3 | 16.8 | 13.5 | 8 | M6*1.0P | 2 | 45 | |
| BT20-45 | 13 | 8.5 | 6.1 | 9.0 | 19 | 37 | 18 | 14 | 11 | M8*1.25P | 2 | 45 | |
| ISOIO | 8.5 | 6.0 | 4.0 | 5.5 | 9.5 | 20 | 11.5 | 7.5 | 7 | M5*0.8P | 1 | 75 | |
| ISO15 | 10 | 7.0 | 5.0 | 6.5 | 11 | 23 | 12 | 8.5 | 9 | M6*1.0P | 1 | 75 | |
