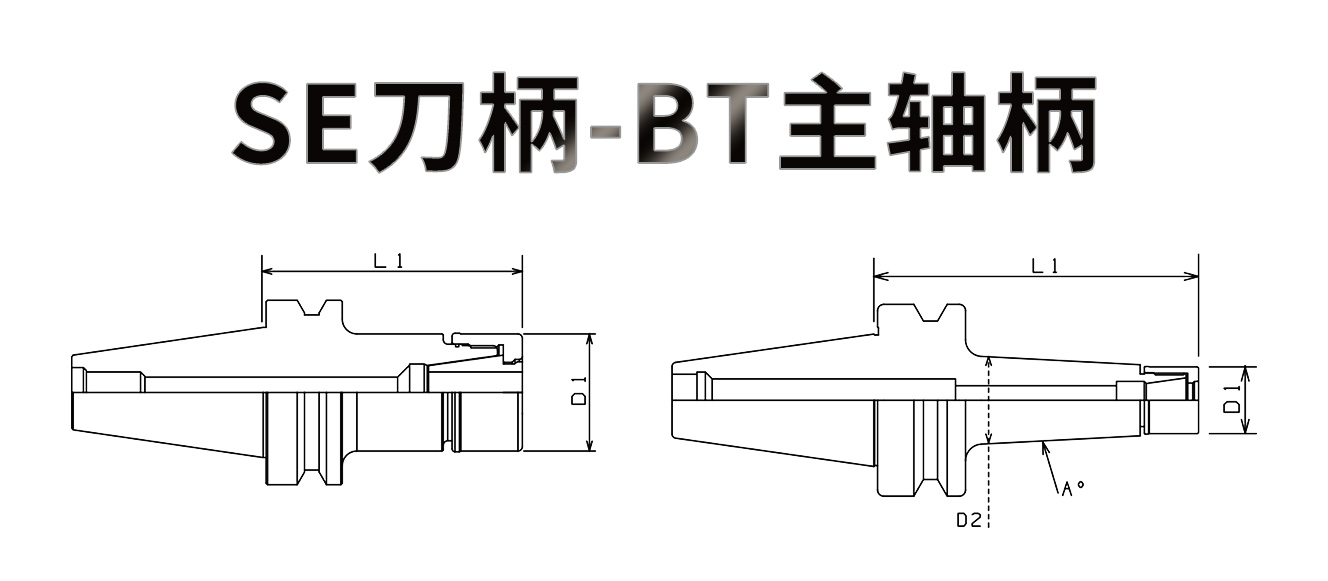

| 型号 | 基本尺寸（mm) Size | |||
| D1 | L1 | 筒夹 | 扳手 | |
| BT30-HSE16PD-60L | 28 | 60 | SE16 | D27.5-BS |
| BT30-HSE16PD-75L | 75 | |||
| BT30-HSE16PD-90L | 90 | |||
| BT30-HSE16PD-150L | 150 | |||
| BT30-HSE20PD-60L | 34 | 60 | SE20 | D35-BS |
| BT30-HSE20PD-75L | 75 | |||
| BT30-HSE20PD-90L | 90 | |||
| BT30-HSE20PD-150L | 150 | |||
| BT30-SE25PD-60L | 42 | 60 | SE25 | SE25-UM |
| BT30-SE25PD-75L | 75 | |||
| BT30-SE25PD-90L | 90 | |||
| BT30-SE32PD-70L | 50 | 70 | SE32 | SE32-UM |
| BT30-SE32PD-75L | 75 | |||
| BT30-SE32PD-100L | 100 | |||
| 型号 | 基本尺寸（mm) Size | |||
| D1 | L1 | 筒夹 | 扳手 | |
| BT40-HSE16PD-70L | 28 | 70 | SE16 | D27.5-BS |
| BT40-HSE16PD-100L | 100 | |||
| BT40-HSE16PD-125L | 125 | |||
| BT40-HSE16PD-150L | 150 | |||
| BT40-HSE16PD-200L | 200 | |||
| BT40-HSE20PD-70L | 34 | 70 | SE20 | D35-BS |
| BT40-HSE20PD-100L | 100 | |||
| BT40-HSE20PD-135L | 135 | |||
| BT40-HSE20PD-150L | 150 | |||
| BT40-SE25PD-70L | 42 | 70 | SE25 | SE25-UM |
| BT40-SE25PD-100L | 100 | |||
| BT40-SE25PD-150L | 150 | |||
| BT40-SE32PD-70L | 50 | 70 | SE32 | SE32-UM |
| BT40-SE32PD-100L | 100 | |||
| BT40-SE32PD-150L | 150 | |||
| 型号 | 基本尺寸（mm) Size | |||
| D1 | L1 | 筒夹 | 扳手 | |
| BT50-HSE16PD-100L | 28 | 100 | SE16 | D27.5-BS |
| BT50-HSE16PD-150L | 150 | |||
| BT50-HSE16PD-200L | 200 | |||
| BT50-HSE20PD-100L | 34 | 100 | SE20 | D35-BS |
| BT50-HSE20PD-150L | 150 | |||
| BT50-HSE20PD-200L | 200 | |||
| BT50-HSE20PD-250L | 250 | |||
| BT50-SE25PD-100L | 42 | 100 | SE25 | SE25-UM |
| BT50-SE25PD-150L | 150 | |||
| BT50-SE25PD-200L | 200 | |||
| BT50-SE25PD-250L | 250 | |||
| BT50-SE32PD-100L | 50 | 100 | SE32 | SE32-UM |
| BT50-SE32PD-150L | 150 | |||
| BT50-SE32PD-200L | 200 | |||
| BT50-SE32PD-250L | 250 | |||
